DC Power Distribution
DC PDUs
Recommended for new builds
Introducing a new best-in-class DC Power Distribution Unit (PDU) product line. High performance, a full feature set, and a ruggedized design combined with a focus on manufacturability and component availability deliver excellent value to our customers. Additionally, the product series was was designed to facilitate minor hardware customizations such as input and output connectors and cables and flexible configuration and operation via software.
This product line is purpose-designed and built for aerospace, defense, and industrial customers who need to manage and protect high-value assets in harsh environments.
Why Good Power Management Matters
Application Example: Battlefield Command
Modern battlefields are a high value mix of personnel, equipment and systems. Providing reliable power to support equipment and systems, and protecting those valuable peripherals from severe transients or other damaging conditions is an essential part of battlefield strategy.
Reliable power distribution and control means supporting both local decisions and remote control and management. And unlike other industrial or commercial PDUs, power distribution for the battlefield must operate reliably in a wide range of hostile conditions, protecting the needs of the mission.

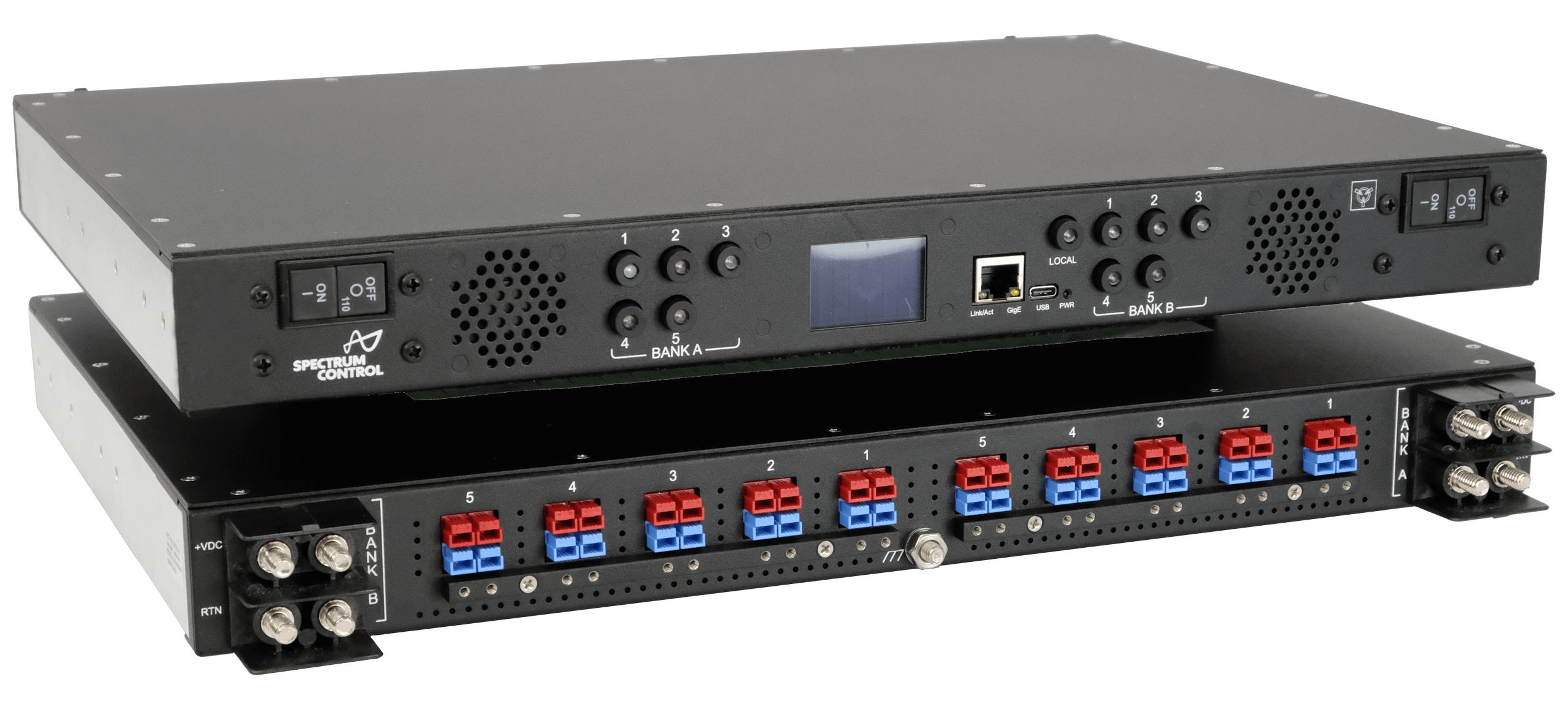

Product Overview
- For aerospace, defense, industrial and scientific applications where it is essential to manage and protect high value assets in harsh environments.
- Spectrum Control’s best in class AC & DC Power Distribution Units provide secure control and reliable protection unlike most COTS vendors who trade off reliability & ruggedness for cost.
- We do this by building a ruggedized product with a full-featured modern controller supporting the latest security and interfaces combined with current, voltage and temperature monitoring on a per port basis.
- Designed to meet MIL-STD-810H Methods: 501.7 Procedure II, 507.6 Procedure II, 514.18 Procedure I, 516.8 Procedure IV and Ve, and MIL_STD_461G: CS101 | RE102.
Features
General Operation
Secure remote access / control / local control.
Front panel status display
(OLED & LEDs).
Common control across AC/DC PDU’s and RF/ Microwave Systems.
- Enables common UI (user interface) and single connection
Supports logical interfaces including SSH, Telnet and Serial interfaces using proprietary ASCII based command line interface (CLI).
Supports SNMPv1/2c/3.
DHCP or Static IPv4 addressing over a Gigabit Ethernet physical layer.
Flexible configuration
Remote Monitoring and control of each outlet individually.
Configurable UP and DOWN Sequencing.
Configurable Channel Groups.
Configurable soft breaker settings including configurable recover retries.
Configurable over and under alarm settings for voltage, current and temperature.
Auto Up Sequence, Group Enable or Individual Channel Enable following special events (power on, EPO).
Hardware
1 RU 19” rack mount package.
Designed for manufacturability, automated production test, emphasis on parts availability.
Front panel switches with LEDs for mains status.
Local / remote control and status.
OLED display for addressing, hour meter and additional status.
Ethernet (GigE) nickel-plated-shielded RJ45 and USB 2.0 type-C interfaces.
Input and output monitoring (voltage, current, temperature) / protection / EMI filtering.
Hardware watchdog timer shuts down unit if control is non-responsive.
Ruggedized design, wide temperature range / low smoke wiring.
Conservatively rated for high MTBF and cool operation.
Specifications
Input Characteristics
| Input Voltage | 18 – 32VDC |
| Total Current | 160A |
| Inputs | 2 x 1P/80A Breaker with high current input lug connections |
| Input Monitoring | • Voltage measurement +/- 1% • Current measurement +/- 5% • Temperature |
| Transient / Surge Protection |
"TVS Diode – Bi-directional Voltage Transient / Surge Protection / 30kW peak pulse capability, 1.0 pS fast response" |
Output Characteristics
| Voltage |
18 – 32VDC
2 Banks, 80A per Bank, 6 Ports per Bank, 40A
Maximum per Port |
| Output Ports | 2x Anderson Power Pole with Retention Screw |
| Output Monitoring per Port | • Voltage measurement +/- 1% • Current measurement +/- 5% • Temperature |
Mechanical Characteristics
| Material | Aluminum |
| Finish | Powder Coat, Black, Fine Texture |
| Lettering | Silk Screen, White |
| Mounting | Brackets accommodate Front or Mid Mount |
| Weight | 5kg |
Communication
| USB Type C connector |
| 10/100/1000 Base-T (MIL-C-26482 RJ-45 Connector) |
Operation Environment
| Operating Temperature | -40C to +50C |
| Storage Temperature | -40C to +80C |
| Relative Humidity | 0 – 95% (non-Condensing) |
| Elevation | 0 – 3,050 meters |
| Sensor | Internal and External Temperature Sensing |
Environmental
| MILSPEC | MIL-STD-810H ○ 501.7 Procedure II ○ 507.6 Procedure II ○ 514.8 Procedure I ○ 516.8 Procedures IV & V MIL-STD-461G |
