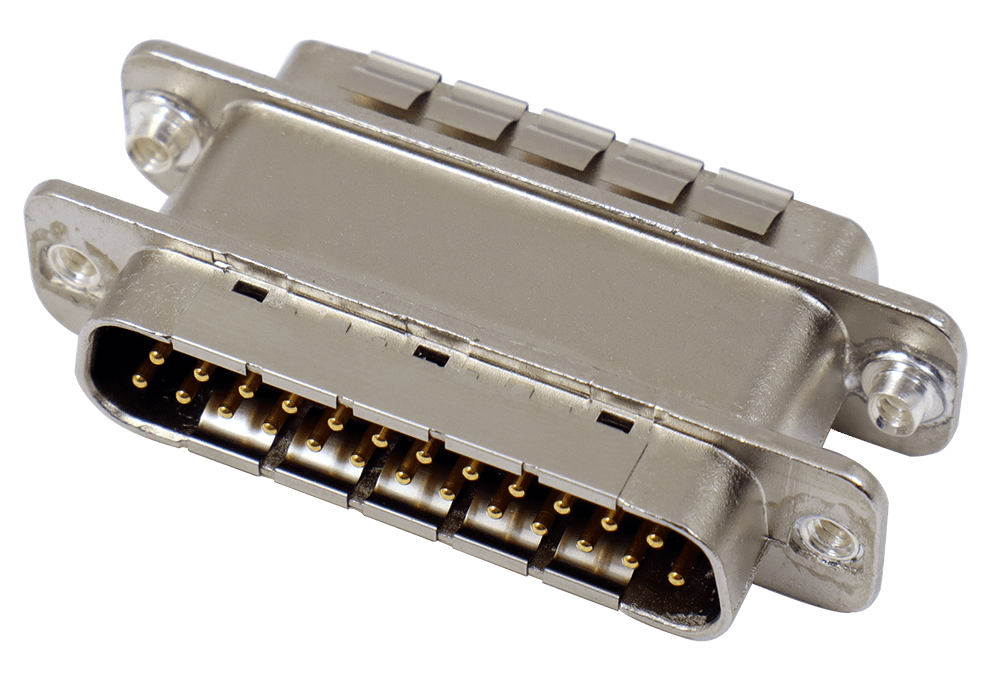

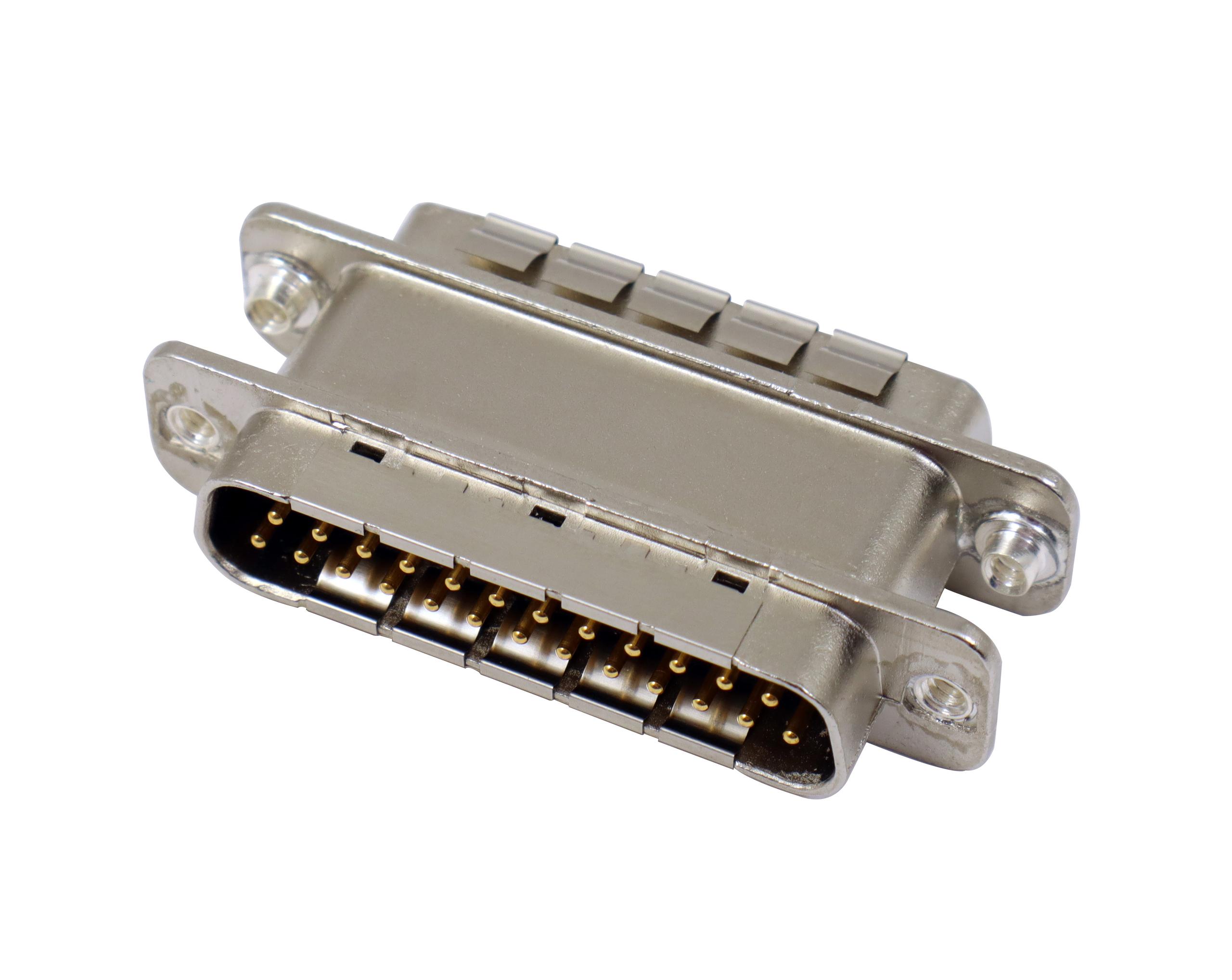

5G EMI Filtered D-Sub Connector
Spectrum Control’s 5G EMI filter D-sub connectors are capable of 70 dB from 1 GHz to 6 GHz in a D-sub connector adapter form factor and are ideal for test enclosures for high-frequency testing, including 5G cellular hardware.
The EMI filter design includes all soldered electrical connections, resulting in low ESR/ESL at frequencies up to 6 GHz and beyond. These EMI filter d-sub connectors have threaded inserts for easy installation and are RoHS compliant.
Product Features
- Multi-pole circuit utilizing materials specifically designed for 5G cellular bands
- Coaxial EMI filter design with all electrical connections soldered resulting in low ESR/ESL at frequencies up to 6 GHz and beyond
- 25-pin adapter geometry perfect for test enclosures applications that require fast and easy ‘plug and play’ on both sides
- Voltage rating 115-250VAC and 400VDC up to 400 Hz
- One-piece die-cast housing and integrated ground clips for more effective high-frequency shielding and shell-to-shell continuity
- EMI filtered D-Sub connector with threaded inserts for easy installation
- RoHS compliant
