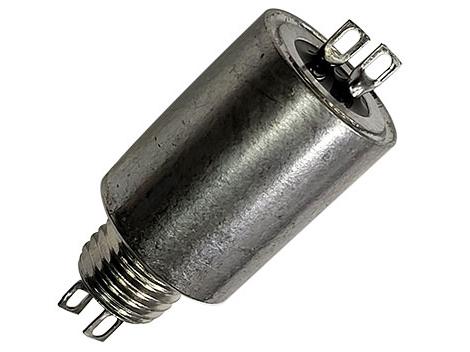

Dual Line EMI Filter
Common Mode, Panel Mount Filter
- Compact design using one dual line filter versus two single line filters reduces space and weight by 50%.
- Design employs a common mode choke and Line-Line capacitor allowing attenuation of noise (both common and differential mode) from both lines on inputs and outputs of AC or DC systems.
- Standard Voltage ratings from 50 V to 200 VDC/130 VAC, 400 Hz. Custom configurations available.
Dual Line vs. Single Line
Existing product offering supports single line input, thus only attenuating single source signals. With a dual line EMI filter, common mode noise can be attenuated based on internal common mode inductor coupled with both line to ground and line to line capacitance while keeping the standard Ø.690 case.
Military & Defense
- Cockpit controls
- Guidance displays
- Lighting systems
- Navigation
- Missile squibs
- Radar
- Rocket motors
Commercial Aerospace
- Rudder control
- Ventilation systems
- Water and waste systems
- Radar
- Flight controls
- Antenna arrays
Industrial
- Fluid management
- Test equipment
- Process control equipment
- Power supplies
- Remote sensors
- Motor controls
Dual Line Filter Product Details
Download product data sheet to choose the best part fit into your system. Learn more about our EMI filtering capabilities for hermetically sealed EMI filters, performance testing, and installation guidelines.
EMC Testing
Find out how Spectrum Control's fully equipped EMC testing laboratory and experienced engineering staff can solve your demanding EMC challenges.
